Sanitary clamped butterfly valve

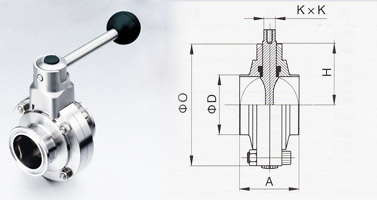

| CLAMPED BUTTERFLY VALVE |
|
|
DIN:
|
Size |
O |
B |
KxK |
A |
H |
|
DN15 |
78.0 |
34.0 |
8.0x8.0 |
66.0 |
39.0 |
|
DN20 |
78.0 |
34.0 |
8.0x8.0 |
66.0 |
39.0 |
|
DN25 |
78.0 |
50.5 |
8.0x8.0 |
66.0 |
39.0 |
|
DN32 |
86.0 |
50.5 |
8.0x8.0 |
66.0 |
43.0 |
|
DN40 |
90.0 |
50.5 |
8.0x8.0 |
70.0 |
45.0 |
|
DN50 |
102.0 |
64.0 |
10.0x10.0 |
76.0 |
51.0 |
|
DN65 |
120.0 |
91.0 |
10.0x10.0 |
80.0 |
60.0 |
|
DN80 |
139.0 |
106.0 |
11.0x11.0 |
84.0 |
69.5 |
|
DN100 |
154.0 |
119.0 |
11.0x11.0 |
104.0 |
77.0 |
|
DN125 |
185.0 |
145.0 |
11.0x11.0 |
136.0 |
92.5 |
|
DN150 |
215.0 |
167.0 |
11.0x11.0 |
146.0 |
107.5 |
SMS:
|
Size |
O |
B |
KxK |
A |
H |
|
25 |
78.0 |
50.5 |
8.0x8.0 |
66.0 |
39.0 |
|
32 |
78.0 |
50.5 |
8.0x8.0 |
66.0 |
39.0 |
|
38 |
86.0 |
50.5 |
8.0x8.0 |
70.0 |
43.0 |
|
51 |
102.0 |
64.0 |
10.0x10.0 |
76.0 |
62.0 |
|
63 |
115.0 |
77.5 |
10.0x10.0 |
80.0 |
57.5 |
|
76 |
128.0 |
91.0 |
10.0x10.0 |
84.0 |
64.0 |
|
89 |
139.0 |
106.0 |
11.0x11.0 |
90.0 |
69.5 |
|
102 |
154.0 |
119.0 |
11.0x11.0 |
104.0 |
77.0 |
ISO/IDF:
|
Size |
O |
B |
KxK |
A |
H |
|
¦Õ19 |
78.0 |
25.4 |
8.0x8.0 |
66.0 |
39.0 |
|
¦Õ25 |
78.0 |
50.5 |
8.0x8.0 |
66.0 |
39.0 |
|
¦Õ32 |
78.0 |
50.5 |
8.0x8.0 |
66.0 |
39.0 |
|
¦Õ38 |
86.0 |
50.5 |
8.0x8.0 |
70.0 |
43.0 |
|
¦Õ45 |
90.0 |
64.0 |
8.0x8.0 |
74.0 |
45.0 |
|
¦Õ51 |
102.0 |
64.0 |
10.0x10.0 |
76.0 |
51.0 |
|
¦Õ57 |
106.0 |
77.5 |
10.0x10.0 |
78.0 |
53.0 |
|
¦Õ63 |
115.0 |
77.5 |
10.0x10.0 |
80.0 |
57.5 |
|
¦Õ76 |
128.0 |
91.0 |
10.0x10.0 |
84.0 |
64.0 |
|
¦Õ89 |
139.0 |
106.0 |
11.0x11.0 |
90.0 |
69.5 |
|
¦Õ102 |
154.0 |
119.0 |
11.0x11.0 |
104.0 |
77.0 |
|
¦Õ108 |
159.0 |
119.0 |
11.0x11.0 |
107.0 |
79.5 |
|
¦Õ133 |
185.0 |
145.0 |
11.0x11.0 |
136.0 |
92.5 |
|
¦Õ159 |
215.0 |
183.0 |
11.0x11.0 |
146.0 |
107.5 |
|
¦Õ219 |
285.0 |
233.5 |
14.0x14.0 |
166.0 |
142.5 |
3A:
|
Size |
O |
B |
KxK |
A |
H |
|
1/2" |
78.0 |
25.4 |
8.0x8.0 |
66.0 |
39.0 |
|
3/4" |
78.0 |
25.4 |
8.0x8.0 |
66.0 |
39.0 |
|
1" |
78.0 |
50.5 |
8.0x8.0 |
66.0 |
39.0 |
|
1 1/2" |
86.0 |
50.5 |
8.0x8.0 |
70.0 |
43.0 |
|
2" |
102.0 |
64.0 |
10.0x10.0 |
76.0 |
51.0 |
|
2 1/2" |
115.0 |
77.5 |
10.0x10.0 |
80.0 |
57.5 |
|
3" |
128.0 |
91.0 |
10.0x10.0 |
84.0 |
64.0 |
|
4" |
154.0 |
119.0 |
11.0x11.0 |
106.0 |
77.0 |
|
5" |
185.0 |
145.0 |
11.0x11.0 |
136.0 |
92.5 |
|
6" |
215.0 |
167.0 |
11.0x11.0 |
146.0 |
107.5 |
|
8" |
285.0 |
217.0 |
14.0x14.0 |
166.0 |
142.5 |
CONNECTION: WELDED,CLAMPED AND THREADED ENDS |
